O2 Secure

The next generation of security panels

The O2 Secure CCTV nvr security cameras system is the Next Generation of Security Panels alarm, the first fully wireless system that can be installed anywhere in the home to deliver interactive security and home automation services. Unlike a hybrid panel, there is no need to pull wires for peripheral devices or other sensors. O2 Secure also eliminates the need to compete for entrance wall space near a power outlet, a challenge for existing self-contained security offerings. O2 Secure can be installed in an office, entertainment center or even a closet. This reduces installation costs, while providing the benefits of locating the panel in a discrete, secure location.

[tabs] [tab title=”
Plug & Play Solution”]
All O2 NVR and IP cameras support Plug & Play feature Simply plug in the IP camera into the PoE port on the NVR and the NVR will configure the IP camera automatically IP system has never been easier![/tab] [tab title=”Fanless Design”]
All O2 NVRs are with Fanless design to minimize the noise made by the system Your NVR is now quieter than ever! [/tab] [tab title=”Full HD”]
O2 system provides 1080P Full HD resolution on all cameras [/tab] [tab title=”IP Camera upgrades on NVR”]
O2 system allows users to upgrade the firmware through NVR directly. So, there is no need to upgrade the IP camera using a separate PC [/tab] [tab title=”Multi Streams “]
Every O2 camera support multi stream. This technology can encode up to triple different streams at the same time [/tab] [tab title=”Anti-Hacker Security Protection “]
Higher standard of security protection Linux based, password modification prompts, password strength evaluation, and https transmission will safely protect your security system [/tab] [tab title=” USB 3.0 “]
All O2 NVRs have a USB 3.0 interface USB 3.0 interface allows higher data download speed compared to USB 2.0. One(1) hour video backup may take up to One(1) hour using USB 2.0 but with USB 3.0 it can be done in 5 minutes [/tab] [tab title=”Corridor Mode “]
Corridor mode to make surveillance more easier and natural for the narrow angle environment. When 9:16 mode is applied, the portion of useful monitoring area can increase upto 80%. Meanwhile, since the vertical angle of view is increased, the blind spot is reduced. [/tab] [/tabs]

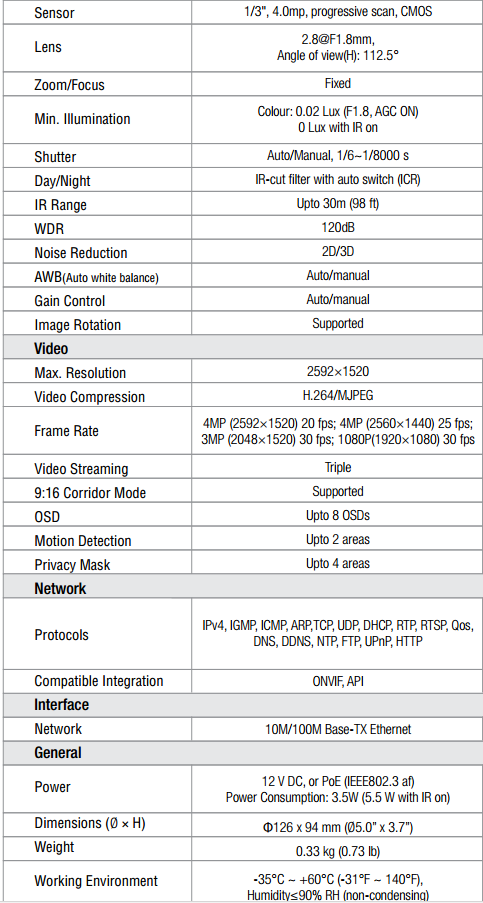

TURRET CAMERA – O2 4MP IR Fixed

[tabs] [tab title=” Overview”] resolution turret camera
[/tab] [tab title=”Optics”]
•Auto day/night functionality
•Optical glass window with higher light transmittance
•3D DNR (Digital Noise Reduction)
•IR anti-reflection window to increase the infrared transmittance
•Smart IR, upto 30m(98 ft) IR distance [/tab] [tab title=”Compression”]
•Triple streams
•9:16 corridor mode
•264/MJPEG 2592×1520 [/tab] [tab title=”Network”]
•ONVIF Conformance[/tab] [tab title=”Structure”]
•Support PoE power supply (optional)
•Wide voltage range of ±25%
•IP66
•4 KV surge protection designed for network interface [/tab] [tab title=”FULL SPECIFICATIONS”][/tab] [/tabs]

DOME CAMERA – O2 4MP IP full HD IR FIXED

[tabs] [tab title=” Overview”]resolution dome camera
[/tab] [tab title=”Optics”]
•Auto day/night functionality
•Optical glass window with higher light transmittance
•3D DNR (Digital Noise Reduction)
•IR anti-reflection window to increase the infrared transmittance
•Smart IR, upto 30m(98 ft) IR distance [/tab] [tab title=”Compression”]
•Triple streams
•9:16 corridor mode
•264/MJPEG 2592×1520 [/tab] [tab title=”Network”]
•ONVIF Conformance[/tab] [tab title=”Structure”]
•Support PoE power supply (optional)
•Wide voltage range of ±25%
•IP66
•4 KV surge protection designed for network interface [/tab] [tab title=”FULL SPECIFICATIONS”][/tab] [/tabs]

Bullet Camera FIXED – O2 4MP IR FIXED

[tabs] [tab title=” Overview”]resolution bullet camera

[/tab] [tab title=”Optics”]
•Auto day/night functionality
•Optical glass window with higher light transmittance
•3D DNR (Digital Noise Reduction)
•IR anti-reflection window to increase the infrared transmittance
•Smart IR, upto 30m(98 ft) IR distance [/tab] [tab title=”Compression”]
•Triple streams
•9:16 corridor mode
•264/MJPEG 2592×1520 [/tab] [tab title=”Network”]
•ONVIF Conformance[/tab] [tab title=”Structure”]
•Support PoE power supply (optional)
•Wide voltage range of ±25%
•IP66
•4 KV surge protection designed for network interface [/tab] [tab title=”FULL SPECIFICATIONS”][/tab] [/tabs]

MOTIRIZED BULLEt CAMERA – O2 4MP IR FIXED

[tabs] [tab title=” Overview”]resolution Motorized bullet camera

[/tab] [tab title=”Optics”]
•Auto day/night functionality
•Optical glass window with higher light transmittance
•3D DNR (Digital Noise Reduction)
•IR anti-reflection window to increase the infrared transmittance
•Smart IR, upto 30m(98 ft) IR distance
•Upto 120dB WDR[/tab] [tab title=”Compression”]
•Triple streams
•9:16 corridor mode
•264/MJPEG 2592×1520
•Customized OSD
•ROI (Region of Interest) [/tab] [tab title=”Network”]
•ONVIF Conformance[/tab] [tab title=”Structure”]
•Support PoE power supply (optional)
•Wide temperature range: -35°C to 60°C (-31°F to 140°F)
•Wide voltage range of ±25%
•IP66
•4 KV surge protection designed for network interface [/tab] [tab title=”FULL SPECIFICATIONS”]
[/tab] [/tabs]

NVR CCTV recorder O2 4cd, 8ch, 16CH

[tabs] [tab title=” Overview”]

[/tab] [tab title=”KEY FEATURES”]
•4/32-channel input
•Third-party IP cameras supported with ONVIF conformance
•Support 2-ch HDMI, 1-ch VGA resolution
•Support 4K Video Ouput Accurate retrieval,
•instant playback 4 SATA HDDs upto 24 TB
•Plug & Play with up to 16 independent
•PoE network interfaces Support for P2P, UPnP, NTP, DHCP, PPPoE
•Support for mobile client access
•Up to 8MP resolution recording
•4 to 16 RJ-45 POE+ Interface[/tab] [tab title=”Network”]
•Incoming bandwidth: 160Mbps
•Outgoing bandwidth: 320Mbps
•Remote connection: 128 [/tab] [tab title=”Video/Audio Output”]
•ONVIF Conformance[/tab] [tab title=”Decoding “]
•Compression: H.265/H.264
•Live view/ Playback: 4K(8MP) / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
•Capability: 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x 720p@25[/tab] [tab title=”Hard Disk”]
•SATA: 4 SATA interfaces (4TB included)
•Capacity: Upto 6TB for each disk[/tab] [tab title=”External Interface”]
•Network Interface: 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
•USB Interface: Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0[/tab] [tab title=”POE “]
•Interface: 4 to 16 independent 100 Mbps PoE network interfaces
•Supported Standard: IEEE 802.3at[/tab] [tab title=”General”]
•Power Supply: 100 ~ 240 VAC
•Consumption (without hard disk and POE): ≤20 W
•Working Temperature: -10°C ~ + 55°C (+14°F ~ +131°F)
•Working Humidity: 10% ~ 90% RH
•Dimensions (H X W X D): 86 × 442 × 425mm (3.4″ × 17.4″ × 16.7″ )
•Weight (without HDD): ≤ 5.24 Kg ( 11.55 lb )[/tab] [tab title=”Rear Pane”]
[/tab]

[/tab][/tabs]

Mobile App iPhone & Android

Supervised your whole cameras directly from your phone.
